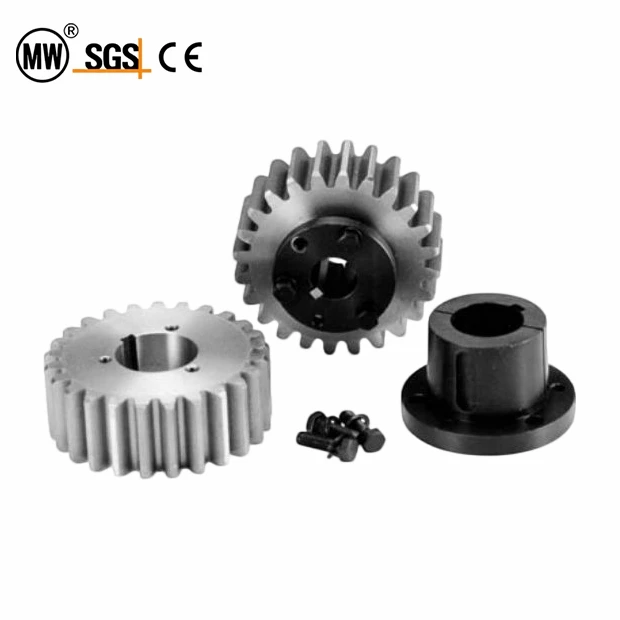

Angrenajele STL sunt un tip comun de angrenaj utilizat pe scară largă în diferite sisteme de transmisie mecanică. Roțile dințate drepte sunt cel mai simplu tip de angrenaje care transmit mișcarea de rotație între axe paralele. Caracteristica lor este că suprafața dintelui este paralelă cu axa angrenajului, deci nu se generează forță axială în timpul procesului de angrenare.
Fabricate de obicei din oțel-de înaltă rezistență, aceste materiale au o bună rezistență la torsiune și rezistență la uzură. În plus, există și versiuni ușoare din plastic, potrivite pentru aplicații cu sarcină redusă. Aceste angrenaje pot fi fabricate prin metode tradiționale de prelucrare mecanică sau specificații de producție și dimensiuni personalizate prin tehnologia de imprimare 3D.
Spur Gears STL sunt utilizate pe scară largă în diverse echipamente mecanice, inclusiv în aparate de uz casnic, automobile, căi ferate, aviație și proiecte spațiale ale NASA. Acestea sunt utilizate în mod obișnuit în scenarii de aplicații de mare-viteză și încărcare mare, cum ar fi ceasuri, gadgeturi de uz casnic, motociclete, mașini etc.
Datorită structurii sale simple și ușor de înțeles, angrenajele STL sunt utilizate în mod obișnuit în instrumentele educaționale și în realizarea de modele pentru a ajuta elevii să înțeleagă principiile de bază ale transmisiei cu angrenaje. Pe scurt, STL Spur Gears ocupă o poziție importantă în domeniul transmisiei mecanice datorită eficienței ridicate, durabilității și gamei largi de aplicații. Acest tip de unelte joacă un rol de neînlocuit atât în producția industrială, cât și în cercetarea educațională.
Parametru
Gama de produse
| Standarde | Tip de serie | Gama de dimensiuni |
| ANSI | 14 1/2 grade, 3DP | STL3Q15 până la STL3S120 |
| 14 1/2 grade, 4DP | STL4P15 până la STL4R144 | |
| 141/2 grade, 5DP | STL5P18 la STL5Q120 | |
| 14 1/2 grade, 6DP | STL6P21 până la STL6Q144 | |
| 14 1/2 grade, 8DP | STL8H24 până la STL8Q160 | |
| 14 1/2 grade, 10DP | STL10G25 până la STL10P200 | |
| 20 de grade, 4DP | STL4Q20B la STL4S160B | |
| 20 de grade, 5DP | STL5P18B la STL5S140B | |
| 20 de grade, 10 DP | STL10H30B la STL10P180B | |

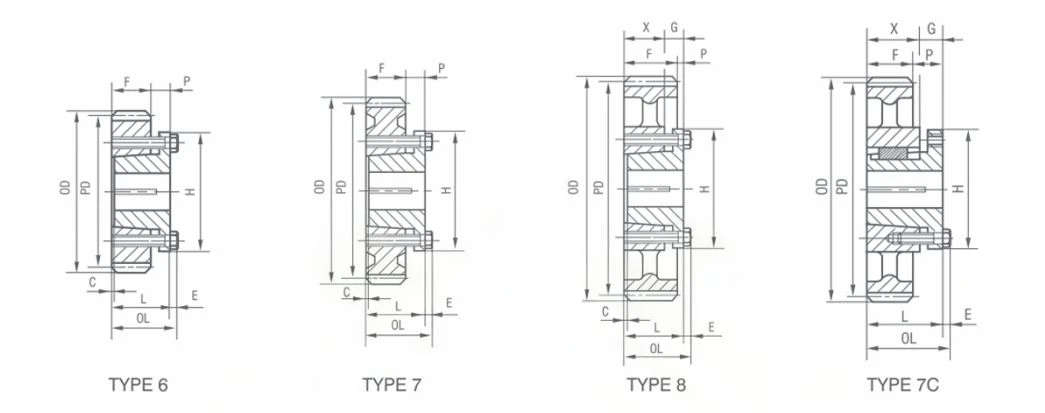

| 20 de grade, 12 DP | STL12H36B la STL12P144B | |

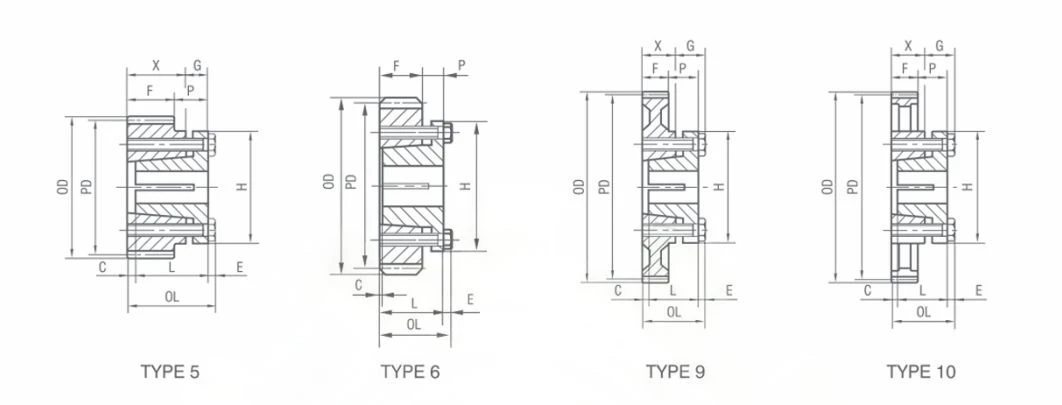

| 20 de grade, 16 DP | STL16G36B la STL16H96B |
Unghi de presiune 141/2 grade
3DP 3''Față
| Partea nr. | Z | Diametru | Bush | Tip | Dimensiuni | greutate lbs |
|||||||||
| PD | OD | F | OL | L | P | C | H | G | X | E | |||||
| STL3Q15 STL3Q18 STL3Q20 STL3Q21 STL3Q24 |
15 18 20 21 24 |
5.000 6.000 6.667 7.000 8.000 |
5.66 6.66 7.33 7.66 8.66 |
Q2 Q2 Q2 Q2 R1 |
2A 2A 3A 3A 3A |
3 3 3 3 3 |
41/32 41/32 325/32 325/32 35/32 |
31/2 31/2 31/2 31/2 27/8 |
3/4 3/4 1/2 1/2 1/8 |
1/4 1/4 - - - |
41/8 41/8 41/8 41/8 53/8 |
- - 3/4 3/4 7/8 |
- - 23/4 23/4 2 |
9/32 9/32 9/32 9/32 9/32 |
10.5 17.8 22.6 25.9 25.8 |
| STL3R30 STL3R42 STL3R48 STL3R54 STL3R60 |
30 42 48 54 60 |
10.000 14.000 16.000 18.000 20.000 |
10.66 14.66 16.66 18.66 20.66 |
R1 R2 R1 R1 R1 |
9C 9C 9C 9C 9C |
3 3 3 3 3 |
35/32 35/32 35/32 35/32 35/32 |
27/8 27/8 27/8 27/8 27/8 |
1/8 1/8 1/8 1/8 1/8 |
- - - - - |
53/8 53/8 53/8 53/8 53/8 |
7/8 7/8 7/8 7/8 7/8 |
2 2 2 2 2 |
9/32 9/32 9/32 9/32 9/32 |
40.0 56.0 65.5 77.0 87.0 |
| STL3R72 STL3S84 STL3S96 STL3S108 STL3S120 |
72 84 96 108 120 |
24.000 28.000 32.000 36.000 40.000 |
24.66 28.66 32.66 36.66 40.66 |
R1 S1 S1 S1 S1 |
9C 7C 7C 7C 7C |
3 3 3 3 3 |
35/32 43/4 43/4 43/4 43/4 |
27/8 43/8 43/8 43/8 43/8 |
1/8 13/8 13/8 13/8 13/8 |
- - - - - |
53/8 63/8 63/8 63/8 63/8 |
7/8 11/16 11/16 11/16 11/16 |
2 35/16 35/16 35/16 35/16 |
9/32 3/8 3/8 3/8 3/8 |
114 151 180 198 244 |
Bore Range
| Bucșă | plictisit Gamă |
| Q2 R1 S1 |
1"-25/8 11/8-33/4 111/16-41/4 |
scaun standard pentru chei
| plictisit Gamă |
Calea cheii |
| 1"-11/4" 15/16-13/8 17/16-13/4 113/16-21/4 25/16-23/4 213/16-31/4 35/16-33/4 313/16-43/8 |
1/4"x1/8* 5/16x5/32 3/8x3/16 1/2x1/4 5/8x5/16 3/4x3/8 7/8x7/16 1x1/2 |

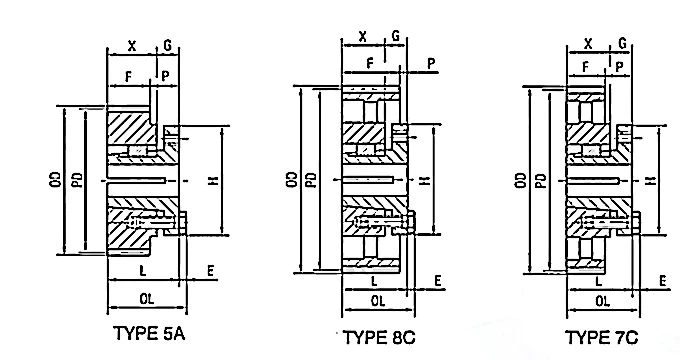

4DP 2''Față
| Partea nr. | Z | Diametru | Bush | Tip | Dimensiuni | greutate lbs |
|||||||||
| PD | OD | F | OL | L | P | C | H | G | X | E | |||||
| STL4P15 STL4P16 STL4P20 STL4P24 STL4P28 |
15 16 20 24 28 |
3.750 4.000 5.000 6.000 7.000 |
4.25 4.50 5.50 6.50 7.50 |
P2 P2 P2 P2 P2 |
5A 5A 5A 5A 5A |
2 2 2 2 2 |
33/16 33/16 33/16 33/16 33/16 |
215/16 215/16 215/16 215/16 215/16 |
15/16 15/16 15/16 15/16 15/16 |
- - - - - |
3 3 3 3 3 |
5/8 5/8 5/8 5/8 5/8 |
25/16 25/16 25/16 25/16 25/16 |
1/4 1/4 1/4 1/4 1/4 |
4.7 5.6 14.4 14.4 20.4 |
| STL4Q30 STL4Q32 STL4Q36 STL4Q40 STL4Q44 |
30 32 36 40 44 |
7.500 8.000 9.000 10.000 11.000 |
8.00 8.50 9.50 10.50 11.50 |
Q1 Q1 Q1 Q1 Q1 |
8C 8C 8C 8C 8C |
2 2 2 2 2 |
225/32 225/32 225/32 225/32 225/32 |
21/2 21/2 21/2 21/2 21/2 |
1/2 1/2 1/2 1/2 1/2 |
- - - - - |
41/8 41/8 41/8 41/8 41/8 |
3/4 3/4 3/4 3/4 3/4 |
13/4 13/4 13/4 13/4 13/4 |
9/32 9/32 9/32 9/32 9/32 |
16.2 18.1 19.2 25.6 26.8 |
| STL4Q48 STL4Q54 STL4Q56 STL4Q60 STL4Q64 |
48 54 56 60 64 |
12.000 13.500 14.000 15.000 16.000 |
12.50 14.00 14.50 15.50 16.50 |
Q1 Q1 Q1 Q1 Q1 |
8C 8C 8C 8C 8C |
2 2 2 2 2 |
225/32 225/32 225/32 225/32 225/32 |
21/2 21/2 21/2 21/2 21/2 |
1/2 1/2 1/2 1/2 1/2 |
- - - - - |
41/8 41/8 41/8 41/8 41/8 |
3/4 3/4 3/4 3/4 3/4 |
13/4 13/4 13/4 13/4 13/4 |
9/32 9/32 9/32 9/32 9/32 |
27.8 31.1 32.3 35.9 39.9 |
| STL4Q72 STL4R80 STL4R88 STL4R96 STL4R120 STL4R144 |
72 80 88 96 120 144 |
18.000 20.000 22.000 24.000 30.000 36.000 |
18.50 20.50 22.50 24.50 30.50 36.50 |
Q1 R1 R1 R1 R1 R1 |
8C 7C 7C 7C 7C 7C |
2 2 2 2 2 2 |
225/32 35/32 35/32 35/32 35/32 35/32 |
21/2 27/8 27/8 27/8 27/8 27/8 |
1/2 7/8 7/8 7/8 7/8 7/8 |
- - - - - - |
41/8 53/8 53/8 53/8 53/8 53/8 |
3/4 7/8 7/8 7/8 7/8 7/8 |
13/4 2 2 2 2 2 |
9/32 9/32 9/32 9/32 9/32 9/32 |
43.3 52.5 60.3 65.5 96.5 127.0 |
Bore Range
| Bucșă | Bore Range |
| P2 Q1 R1 |
3/4''-13/4'' 3/4-211/16 11/8-33/4 |
scaun standard pentru chei
| plictisit Gamă |
Calea cheii |
| 3/4"-7/8" 15/16-11/4 15/16&13/8 17/16-13/4 113/16-21/4 25/16-23/4 213/16-31/4 33/8-33/4 |
3/16"x3/32" 1/4x1/8 5/16x5/32 3/8x3/16 1/2x1/4 5/8x5/16 3/4x3/8 7/8x7/16 |
5DP 13/4" Față
| Partea nr. | Z | Diametru | Bush | Tip | Dimensiuni | greutate lbs |
|||||||||
| PD | OD | F | OL | L | P | C | H | G | X | E | |||||
| STL5P18 STL5P20 STL5P24 STL5P30 STL5P35 |
18 20 24 30 35 |
3.60 4.00 4.80 6.00 7.00 |
4.00 4.40 5.20 6.40 7.40 |
P1 P1 P1 P1 P1 |
2A 2A 3A 3A 3A |
13/4 13/4 13/4 13/4 13/4 |
25/8 25/8 23/16 23/16 23/16 |
115/16 115/16 115/16 115/16 115/16 |
5/8 5/8 3/16 3/16 3/16 |
7/16 7/16 - - - |
3 3 3 3 3 |
- - 5/8 5/8 5/8 |
- - 15/16 15/16 15/16 |
1/4 1/4 1/4 1/4 1/4 |
3.4 4.5 6.4 10.6 14.9 |
| STL5Q40 STL5Q45 STL5Q50 STL5Q60 STL5Q70 |
40 45 50 60 70 |
8.00 9.00 10.00 12.00 14.00 |
8.40 9.40 10.40 12.40 14.40 |
Q1 Q1 Q1 Q1 Q1 |
7C 7C 7C 7C 7C |
13/4 13/4 13/4 13/4 13/4 |
225/32 225/32 225/32 225/32 225/32 |
21/2 21/2 21/2 21/2 21/2 |
3/4 3/4 3/4 3/4 3/4 |
- - - - - |
41/8 41/8 41/8 41/8 41/8 |
3/4 3/4 3/4 3/4 3/4 |
13/4 13/4 13/4 13/4 13/4 |
9/32 9/32 9/32 9/32 9/32 |
15.7 17.4 18.7 21.6 28.0 |
| STL5Q80 STL5Q90 STL5Q120 |
80 90 120 |
16.00 18.00 24.00 |
16.40 18.40 24.40 |
Q1 Q1 Q1 |
7C 7C 7C |
13/4 13/4 13/4 |
225/32 225/32 225/32 |
21/2 21/2 21/2 |
3/4 3/4 3/4 |
- - - |
41/8 41/8 41/8 |
3/4 3/4 3/4 |
13/4 13/4 13/4 |
9/32 9/32 9/32 |
33.5 36.5 52.0 |
Bore Range
| Bucșă | Bore Range |
| P1 Q1 |
1/2''-13/4'' 3/4-211/16 |
Scaun standard pentru chei
| Bore Range | Scaun cheie |
| 1/2"-9/16" 5/8-7/8 15/16-11/4 15/16-13/8 17/16-13/4 113/16-21/4 25/16-23/4 213/16-31/4 |
1/8'x1/16'' 3/16x3/32 1/4x1/8 5/16x5/32 3/8x3/16 1/2x1/4 5/8x5/16 3/4x3/8 |
6DP 11/2" Față
| Partea nr. | Z | Diametru | Bush | Tip | Dimensiuni | greutate lbs |
|||||||||
| PD | OD | F | OL | L | P | C | H | G | X | E | |||||
| STL6P21 STL6P24 STL6P30 STL6P32 STL6P33 |
21 24 30 32 33 |
3.500 4.000 5.000 5.333 5.500 |
3.83 4.33 5.33 5.66 5.83 |
P1 P1 P1 P1 P1 |
2A 2A 3A 3A 3A |
11/2 11/2 11/2 11/2 11/2 |
23/8 23/8 23/16 23/16 23/16 |
115/16 115/16 115/16 115/16 115/16 |
5/8 5/8 7/16 7/16 7/16 |
3/16 3/16 - - - |
3 3 3 3 3 |
- - 5/8 5/8 5/8 |
- - 15/16 15/16 15/16 |
1/4 1/4 1/4 1/4 1/4 |
2.7 3.9 6.5 7.7 8.1 |
| STL6P36 STL6P40 STL6P42 STL 6P48 STL6P60 |
36 40 42 48 60 |
6.000 6.667 7.000 8.000 10.000 |
6.33 7.00 7.33 8.33 10.33 |
P1 P1 P1 P1 P1 |
3A 3A 3A 8C 8C |
11/2 11/2 11/2 11/2 11/2 |
33/16 23/16 23/16 23/16 23/16 |
115/16 115/16 115/16 115/16 115/16 |
7/16 7/16 7/16 7/16 7/16 |
- - - - - |
3 3 3 3 3 |
5/8 5/8 5/8 5/8 5/8 |
15/16 15/16 15/16 15/16 15/16 |
1/4 1/4 1/4 1/4 1/4 |
10.1 12.6 14.2 15.2 16.2 |
| STL6P64 STL6P72 STL6Q84 STL6Q96 STL6Q108 |
64 72 84 96 108 |
10.667 12.000 14.000 16.000 18.000 |
11.00 12.33 14.33 16.33 18.33 |
P1 P1 Q1 Q1 Q1 |
8C 8C 7C 7C 7C |
11/2 11/2 11/2 11/2 11/2 |
23/16 23/16 225/32 225/32 225/32 |
115/16 115/16 21/2 21/2 21/2 |
7/16 7/16 1 1 1 |
- - - - - |
3 3 41/8 41/8 41/8 |
5/8 5/8 3/4 3/4 3/4 |
15/16 15/16 13/4 13/4 13/4 |
1/4 1/4 9/32 9/32 9/32 |
17.2 18.2 19.3 22.8 26.8 |
| STL6Q120 STL6Q132 STL6Q144 |
120 132 144 |
20.000 22.000 24.000 |
20.33 22.33 24.33 |
Q1 Q1 Q1 |
7C 7C 7C |
11/2 11/2 11/2 |
225/32 225/32 225/32 |
21/2 21/2 21/2 |
1 1 1 |
- - - |
41/8 41/8 41/8 |
3/4 3/4 3/4 |
13/4 13/4 13/4 |
9/32 9/32 9/32 |
31.4 44.2 48.4 |
Bore Range
| Bucșă | Bore Range |
| P1 Q1 |
1/2"-13/4" 3/4-211/16" |
scaun standard pentru chei
| Bore Range | Scaun cheie |
| 3/8"-7/16" 1/2-9/16 5/8-7/8 15/16-11/4 15/16-13/8 17/16-13/4 113/16-21/4 25/16-23/4 |
Nici unul 1/8"×1/16" 3/16×3/32 1/4×1/8 5/16×5/32 3/8×3/16 1/2×1/4 5/8×5/16 |

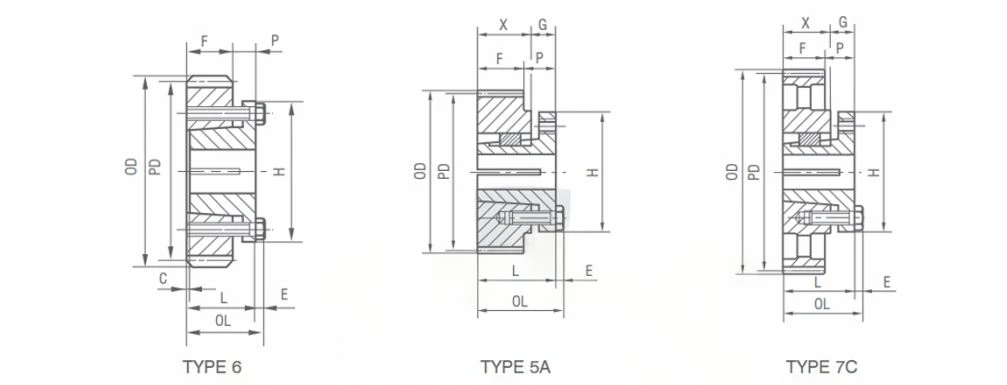

8DP 11/4" Față
| Partea nr. | Z | Diametru | Bush | Tip | Dimensiuni | Greutate Lbs | |||||||||
| PD | OD | F | OL | L | P | C | H | G | X | E | |||||
| STL 8H24 STL 8H28 STL 8H30 STL 8H32 STL 8P36 |
24 28 30 32 36 |
3.000 3.500 3.750 4.000 4.500 |
3.25 3.75 4.00 4.25 4.75 |
H H H H P1 |
6 6 6 6 5A |
11/4 11/4 11/4 11/4 11/4 |
17/8 17/8 17/8 17/8 23/16 |
11/4 11/4 11/4 11/4 115/16 |
7/16 7/16 7/16 7/16 11/16 |
7/16 7/16 7/16 7/16 - |
21/2 21/2 21/2 21/2 3 |
- - - - 5/8 |
- - - - 15/16 |
3/16 3/16 3/16 3/16 1/4 |
1.1 2.6 3.0 3.8 4.5 |
| STL 8P40 STL 8P42 STL 8P44 STL 8P48 STL 8P54 |
40 42 44 48 54 |
5.000 5.250 5.500 6.000 6.750 |
5.25 5.50 5.75 6.25 7.00 |
P1 P1 P1 P1 P1 |
5A 5A 5A 5A 5A |
11/4 11/4 11/4 11/4 11/4 |
23/16 23/16 23/16 23/16 23/16 |
115/16 115/16 115/16 115/16 115/16 |
11/16 11/16 11/16 11/16 11/16 |
- - - - - |
3 3 3 3 3 |
5/8 5/8 5/8 5/8 5/8 |
15/16 15/16 15/16 15/16 15/16 |
1/4 1/4 1/4 1/4 1/4 |
5.8 6.9 7.7 9.2 12.1 |
| STL 8P56 STL 8P60 STL 8P64 STL 8P72 STL 8P80 |
56 60 64 72 80 |
7.000 7.500 8.000 9.000 10.000 |
7.25 7.75 8.25 9.25 10.25 |
P1 P1 P1 P1 P1 |
5A 5A 7C 7C 7C |
11/4 11/4 11/4 11/4 11/4 |
23/16 23/16 23/16 23/16 23/16 |
115/16 115/16 115/16 115/16 115/16 |
11/16 11/16 11/16 11/16 11/16 |
- - - - - |
3 3 3 3 3 |
5/8 5/8 5/8 5/8 5/8 |
15/16 15/16 15/16 15/16 15/16 |
1/4 1/4 1/4 1/4 1/4 |
6.6 7.4 7.7 9.1 10.6 |
| STL 8P84 STL 8P88 STL 8P96 STL 8P112 STL 8P120 |
84 88 96 112 120 |
10.500 11.000 12.000 14.000 15.000 |
10.75 11.25 12.25 14.25 15.25 |
P1 P1 P1 P1 P1 |
7C 7C 7C 7C 7C |
11/4 11/4 11/4 11/4 11/4 |
23/16 23/16 23/16 23/16 23/16 |
115/16 115/16 115/16 115/16 115/16 |
11/16 11/16 11/16 11/16 11/16 |
- - - - - |
3 3 3 3 3 |
5/8 5/8 5/8 5/8 5/8 |
15/16 15/16 15/16 15/16 15/16 |
1/4 1/4 1/4 1/4 1/4 |
10.9 11.9 13.4 16.9 18.5 |
| STL 8P128 STL 8P144 STL 8Q160 |
128 144 160 |
16.000 18.000 20.000 |
16.25 18.25 20.25 |
P1 P1 Q1 |
7C 7C 7C |
11/4 11/4 11/4 |
23/16 23/16 225/32 |
115/16 115/16 21/2 |
11/16 11/16 11/16 |
- - - |
3 3 41/8 |
5/8 5/8 3/4 |
15/16 15/16 13/4 |
1/4 1/4 9/32 |
21.8 26.3 32.2 |
Bore Range
| Bucșă | plictisit Gamă |
| H P1 Q1 |
3/8"-11/2" 1/2-13/4 3/4-211/16 |
Scaun standard pentru chei
| Bore Range | Scaun cheie | Bore Range | Scaun cheie |
| 3/8"-7/16" | Nici unul | 15/16-13/8 | 5/16×5/32 |
| 1/2-9/16 | 1/8"×1/16" | 17/16-13/4 | 3/8×3/16 |
| 5/8-7/8 | 3/16×3/32 | 113/16-21/4 | 1/2×1/4 |
| 15/16-11/4 | 1/4×1/8 | 25/16-211/16 | 5/8×5/16 |

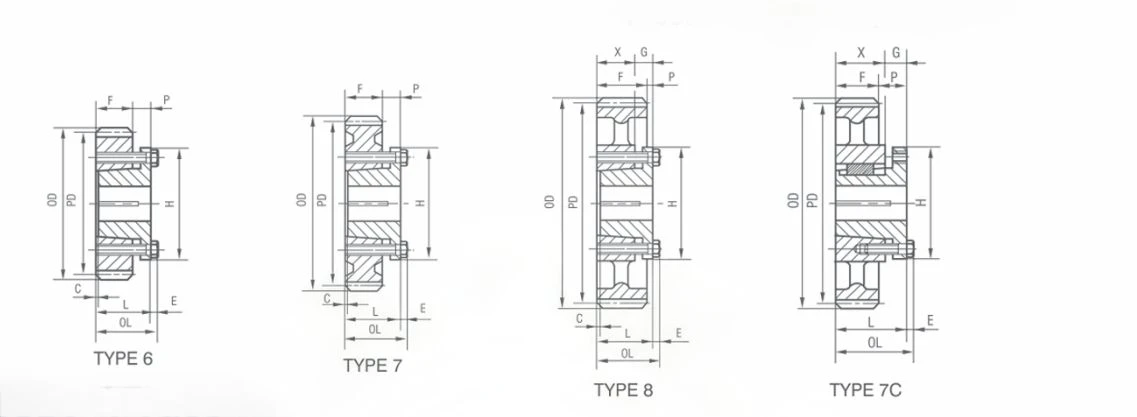

10DP 1" Față
| Partea nr. | Z | Diametru | Bush | Tip | Dimensiuni | greutate lbs |
|||||||||
| PD | OD | F | OL | L | P | C | H | G | X | E | |||||
| STL10G25 STL10H30 STL10H32 STL10H35 STL10H36 |
25 30 32 35 36 |
2.50 3.00 3.20 3.50 3.60 |
2.70 3.20 3.40 3.70 3.80 |
G H H H H |
6 6 6 6 6 |
1 1 1 1 1 |
15/8 15/8 15/8 15/8 15/8 |
1 11/4 11/4 11/4 11/4 |
7/16 7/16 7/16 7/16 7/16 |
7/16 3/16 3/16 3/16 3/16 |
2 21/2 21/2 21/2 21/2 |
- - - - - |
- - - - - |
3/16 3/16 3/16 3/16 3/16 |
0.9 1.3 1.6 2.0 2.3 |
| STL10H40 STL10H45 STL10H48 STL10H50 STL10H54 |
40 45 48 50 54 |
4.00 4.50 4.80 5.00 5.40 |
4.20 4.70 5.00 5.20 5.60 |
H H H H H |
6 6 6 7 7 |
1 1 1 1 1 |
15/8 15/8 15/8 15/8 15/8 |
11/4 11/4 11/4 11/4 11/4 |
7/16 7/16 7/16 7/16 7/16 |
3/16 3/16 3/16 3/16 3/16 |
21/2 21/2 21/2 21/2 21/2 |
- - - - - |
- - - - - |
3/16 3/16 3/16 3/16 3/16 |
2.9 3.8 4.8 5.4 6.3 |
| STL10H55 STL10H60 STL10H64 STL10H70 STL10H72 |
55 60 64 70 72 |
5.50 6.00 6.40 7.00 7.20 |
5.70 6.20 6.60 7.20 7.40 |
H H H H H |
8 8 8 8 8 |
1 1 1 1 1 |
11/2 11/2 11/2 11/2 11/2 |
11/4 11/4 11/4 11/4 11/4 |
5/16 5/16 5/16 5/16 5/16 |
1/16 1/16 1/16 1/16 1/16 |
21/2 21/2 21/2 21/2 1/2 |
7/16 7/16 7/16 7/16 7/16 |
7/8 7/8 7/8 7/8 7/8 |
3/16 3/16 3/16 3/16 3/16 |
3.0 3.8 4.4 4.8 5.0 |
| STL10H80 STL10H90 STL10H96 STL10H100 STL10P120 |
80 90 96 100 120 |
8.00 9.00 9.60 10.00 12.00 |
8.20 9.20 9.80 10.20 12.20 |
H H H H P |
8 8 8 8 7C |
1 1 1 1 1 |
11/2 11/2 11/2 11/2 23/16 |
11/4 11/4 11/4 11/4 115/16 |
5/16 5/16 5/16 5/16 15/16 |
1/16 1/16 1/16 1/16 - |
21/2 21/3 21/2 21/2 3 |
7/16 7/16 7/16 7/16 5/8 |
7/8 7/8 7/8 7/8 15/16 |
3/16 3/16 3/16 3/16 1/4 |
5.8 6.4 7.5 8.3 10.5 |
| STL10P140 STL10P180 STL10P200 |
140 180 200 |
14.00 18.00 20.00 |
14.20 18.20 20.20 |
P P P |
7C 7C 7C |
1 1 1 |
23/16 23/16 23/16 |
115/16 115/16 115/16 |
15/16 15/16 15/16 |
- - - |
3 3 3 |
5/8 5/8 5/8 |
15/16 15/16 15/16 |
1/4 1/4 1/4 |
13.0 19.9 22.3 |
Bore Range
| Bucșă | Bore Range |
| G H P1 |
3/8"-1" 3/8-11/2 1/2-13/4 |
Unghi de presiune 20 de grade
4DP 31/2'' Față
| Partea nr. | Z | Diametru | Bush | Tip | Dimensiuni | greutate lbs |
|||||||||
| PD | OD | F | OL | L | P | C | H | G | X | E | |||||
| STL 4Q20B STL 4Q24B STL 4Q28B STL 4R32B STL 4R40B |
20 24 28 32 40 |
5.00 6.00 7.00 8.00 10.00 |
5.50 6.50 7.50 8.50 10.50 |
Q2 Q2 Q2 R1 R1 |
2A 2A 3A 3A 9C |
31/2 31/2 31/2 31/2 31/2 |
417/32 417/32 325/32 31/2 31/2 |
31/2 31/2 31/2 27/8 27/8 |
3/4 3/4 - 5/8 5/8 |
3/4 3/4 - - - |
41/8 41/8 41/8 53/8 53/8 |
- - 3/4 7/8 7/8 |
- - 23/4 2 2 |
9/32 9/32 9/32 9/32 9/32 |
12.9 21.5 29.4 38.5 42.7 |
| STL 4R44B STL 4R60B STL 4R64B STL 4R72B STL 4R80B |
44 60 64 72 80 |
11.00 15.00 16.00 18.00 20.00 |
11.5 15.50 16.50 18.50 20.50 |
R1 R1 R1 R1 R1 |
9C 9C 9C 9C 9C |
31/2 31/2 31/2 31/2 31/2 |
31/2 31/2 31/2 31/2 31/2 |
27/8 27/8 27/8 27/8 27/8 |
5/8 5/8 5/8 5/8 5/8 |
- - - - - |
53/8 53/8 53/8 53/8 53/8 |
7/8 7/8 7/8 7/8 7/8 |
2 2 2 2 2 |
9/32 9/32 9/32 9/32 9/32 |
47.8 67.5 73.8 84.0 96.5 |
| STL 4R96B STL 4S112B STL 4S128B STL 4S160B |
96 112 128 160 |
24.00 28.00 32.00 40.00 |
24.50 28.50 32.50 40.50 |
R1 S1 S1 S1 |
9C 8C 8C 8C |
31/2 31/2 31/2 31/2 |
31/2 43/4 43/4 43/4 |
27/8 43/8 43/8 43/8 |
5/8 7/8 7/8 7/8 |
- - - - |
53/8 63/8 63/8 63/8 |
7/8 11/16 11/16 11/16 |
2 35/16 35/16 35/16 |
9/32 3/8 3/8 3/8 |
124 166 199 250 |
5DP 21/2" față
| Partea nr. | Z | Diametru | Bush | Tip | Dimensiuni | greutate lbs |
|||||||||
| PD | OD | F | OL | L | P | C | H | G | X | E | |||||
| STL5P18B STL5P20B STL5P35B STL5Q40B STL5Q45B |
18 20 35 40 45 |
3.60 4.00 7.00 8.00 9.00 |
4.00 4.40 7.40 8.40 9.40 |
P2 P2 P2 Q1 Q1 |
2A 2A 3A 8C 8C |
21/2 21/2 21/2 21/2 21/2 |
33/8 33/8 33/16 225/32 225/32 |
215/16 215/16 215/16 21/2 21/2 |
5/8 5/8 7/16 - - |
3/16 3/16 - - - |
3 3 3 41/8 41/8 |
- - 5/8 3/4 3/4 |
- - 25/16 13/4 13/4 |
1/4 1/4 1/4 9/32 9/32 |
4.9 6.7 24.0 18.6 22.2 |
| STL5Q60B STL5Q70B STL5Q80B STL5Q90B STL5R100B |
60 70 80 90 100 |
12.00 14.00 16.00 18.00 20.00 |
12.40 14.40 16.40 18.40 20.40 |
Q1 Q1 Q1 Q1 R1 |
8C 8C 8C 8C 8C |
21/2 21/2 21/2 21/2 21/2 |
225/32 225/32 225/32 225/32 35/32 |
21/2 21/2 21/2 21/2 27/8 |
- - - - 3/8 |
- - - - - |
41/8 41/8 41/8 41/8 53/8 |
3/4 3/4 3/4 3/4 7/8 |
13/4 13/4 13/4 13/4 2 |
9/32 9/32 9/32 9/32 9/32 |
32.9 35.9 47.1 52.0 60.0 |
| STL5R120B STL5S140B |
120 140 |
24.00 28.00 |
24.40 28.40 |
R1 S1 |
8C 7C |
21/2 21/2 |
35/32 43/4 |
27/8 43/8 |
3/8 17/8 |
- - |
53/8 63/8 |
7/8 11/16 |
2 35/16 |
9/32 3/8 |
77.0 141 |
10DP 11/4" față
| Partea nr. | Z | Diametru | Bush | Tip | Dimensiuni | greutate lbs |
|||||||||
| PD | OD | F | OL | L | P | C | H | G | X | E | |||||
| STL10G25 STL10H30 STL10H32 STL10H35 STL10H36 |
25 30 32 35 36 |
2.50 3.00 3.20 3.50 3.60 |
2.70 3.20 3.40 3.70 3.80 |
G H H H H |
6 6 6 6 6 |
1 1 1 1 1 |
15/8 15/8 15/8 15/8 15/8 |
1 11/4 11/4 11/4 11/4 |
7/16 7/16 7/16 7/16 7/16 |
7/16 3/16 3/16 3/16 3/16 |
2 21/2 21/2 21/2 21/2 |
- - - - - |
- - - - - |
3/16 3/16 3/16 3/16 3/16 |
0.9 1.3 1.6 2.0 2.3 |
| STL10H40 STL10H45 STL10H48 STL10H50 STL10H54 |
40 45 48 50 54 |
4.00 4.50 4.80 5.00 5.40 |
4.20 4.70 5.00 5.20 5.60 |
H H H H H |
6 6 6 7 7 |
1 1 1 1 1 |
15/8 15/8 15/8 15/8 15/8 |
11/4 11/4 11/4 11/4 11/4 |
7/16 7/16 7/16 7/16 7/16 |
3/16 3/16 3/16 3/16 3/16 |
21/2 21/2 21/2 21/2 21/2 |
- - - - - |
- - - - - |
3/16 3/16 3/16 3/16 3/16 |
2.9 3.8 4.8 5.4 6.3 |
| STL10H55 STL10H60 STL10H64 STL10H70 STL10H72 |
55 60 64 70 72 |
5.50 6.00 6.40 7.00 7.20 |
5.70 6.20 6.60 7.20 7.40 |
H H H H H |
8 8 8 8 8 |
1 1 1 1 1 |
11/2 11/2 11/2 11/2 11/2 |
11/4 11/4 11/4 11/4 11/4 |
5/16 5/16 5/16 5/16 5/16 |
1/16 1/16 1/16 1/16 1/16 |
21/2 21/2 21/2 21/2 1/2 |
7/16 7/16 7/16 7/16 7/16 |
7/8 7/8 7/8 7/8 7/8 |
3/16 3/16 3/16 3/16 3/16 |
3.0 3.8 4.4 4.8 5.0 |
| STL10H80 STL10H90 STL10H96 STL10H100 STL10P120 |
80 90 96 100 120 |
8.00 9.00 9.60 10.00 12.00 |
8.20 9.20 9.80 10.20 12.20 |
H H H H P |
8 8 8 8 7C |
1 1 1 1 1 |
11/2 11/2 11/2 11/2 23/16 |
11/4 11/4 11/4 11/4 115/16 |
5/16 5/16 5/16 5/16 15/16 |
1/16 1/16 1/16 1/16 - |
21/2 21/3 21/2 21/2 3 |
7/16 7/16 7/16 7/16 5/8 |
7/8 7/8 7/8 7/8 15/16 |
3/16 3/16 3/16 3/16 1/4 |
5.8 6.4 7.5 8.3 10.5 |
| STL10P140 STL10P180 STL10P200 |
140 180 200 |
14.00 18.00 20.00 |
14.20 18.20 20.20 |
P P P |
7C 7C 7C |
1 1 1 |
23/16 23/16 23/16 |
115/16 115/16 115/16 |
15/16 15/16 15/16 |
- - - |
3 3 3 |
5/8 5/8 5/8 |
15/16 15/16 15/16 |
1/4 1/4 1/4 |
13.0 19.9 22.3 |
Bore Range
| Bucșă | plictisit Gamă |
| H1 P1 Q1 |
3/8"-11/2" 1/2-13/4 3/4-211/16 |
Scaun standard pentru chei
| plictisit Gamă |
Scaunele pentru chei |
| 3/8"&7/16" 1/2 &9/16 5/8-7/8 15/16-11/4 15/16&13/8 17/16-13/4 113/16-21/4 25/16-211/16 |
Nici unul 1/8"×1/16" 3/16×3/32 1/4×1/8 5/16×5/32 3/8×3/16 1/2×1/4 5/8×5/16 |
12DP 1" Față
| Partea nr. | Z | Diametru | Bush | Tip | Dimensiuni | greutate lbs |
|||||||||
| PD | OD | F | OL | L | P | C | H | G | X | E | |||||
| STL12H36B STL12H42B STL12H48B STL12H60B STL12H72B |
36 42 48 60 72 |
3.00 3.50 4.00 5.00 6.00 |
3.16 3.66 4.16 5.16 6.16 |
H H H H H |
6 6 6 7 8 |
1 1 1 1 1 |
15/8 15/8 15/8 15/8 11/2 |
11/4 11/4 11/4 11/4 11/4 |
7/16 7/16 7/16 7/16 5/16 |
3/16 3/16 3/16 3/16 1/16 |
21/2 21/2 21/2 21/2 21/2 |
- - - - 7/16 |
- - - - 7/8 |
3/16 3/16 3/16 3/16 3/16 |
1.4 2.0 3.0 3.5 3.9 |
| STL12H84B STL12H96B STL12H108B STL12P144B |
84 96 108 144 |
7.00 8.00 9.00 12.00 |
7.16 8.16 9.16 12.16 |
H H H P1 |
8 8 8 7C |
1 1 1 1 |
11/2 11/2 11/2 23/16 |
11/4 11/4 11/4 115/16 |
5/16 5/16 5/16 15/16 |
1/16 1/16 1/16 - |
21/2 21/2 21/2 3 |
7/16 7/16 7/16 5/8 |
7/8 7/8 7/8 15/16 |
3/16 3/16 3/16 1/4 |
4.5 5.2 5.8 10.5 |
Bore Range
| Bucșă | Bore Range |
| G H P1 |
3/8"-1" 3/8-11/2 1/2-13/4 |
Scaun standard pentru chei
| Bore Range | Scaunele pentru chei |
| 3/8"&7/16" 1/2&9/16 5/8-7/8 15/16-11/4 15/16-13/8 17/16-13/4 |
Nici unul 1/8"×1/16" 3/16×3/32 1/4×1/8 5/16×5/32 3/8×3/16 |
16DP 3/4''Față
| Partea nr. | Z | Diametru | Bush | Tip | Dimensiuni | greutate lbs |
|||||||||
| PD | OD | F | OL | L | P | C | H | G | X | E | |||||
| STL16G36B STL16G40B STL16H48B STL16H56B STL16H64B |
36 40 48 56 64 |
2.250 2.500 3.000 3.500 4.000 |
2.37 2.62 3.12 3.62 4.12 |
G G H H H |
6 6 5 5 5 |
3/4 3/4 3/4 3/4 3/4 |
13/8 13/8 11/2 11/2 11/2 |
1 1 11/4 11/4 11/4 |
7/16 7/16 9/16 9/16 9/16 |
3/16 3/16 1/16 1/16 1/16 |
2 2 21/2 21/2 21/2 |
- - 7/16 7/16 7/16 |
- - 7/8 7/8 7/8 |
3/16 3/16 3/16 3/16 3/16 |
0.6 0.8 1.0 1.7 2.3 |
| STL16H80B STL16H96B |
80 96 |
5.000 6.000 |
5.12 6.12 |
H H |
9 10 |
3/4 3/4 |
11/2 11/2 |
11/4 11/4 |
9/16 9/16 |
1/16 1/16 |
21/2 21/2 |
7/16 7/16 |
7/8 7/8 |
3/16 3/16 |
3.0 3.5 |
Bore Range
| Bucșă | Bore Range |
| G H |
3/8"-1" 3/8-11/2 |
Scaun standard pentru chei
| Bore Range | Scaunele pentru chei |
| 3/8"&7/16" 1/2&9/16 5/8-7/8 15/16-11/4 15/16&13/8 17/16 &13/4 |
Nici unul 1/8×1/16 3/16×3/32 1/4×1/8 5/16×5/32 3/8×5/16 |
Tag-uri populare: roți dințate stl, China, producători, furnizori, fabrică de roți dintate stl, Angrenaje de mitră din oțel cu alezaj finisat, angrenaje, Angrenaje inelare, Angrenaje de unghi din oțel cu alezaj standard, seria A, Angrenaje cu melc și angrenaje cu melc
